The FIRST Trigger Plot
The Blue Line is AFTER Trigger Job
In the past judging a good trigger 'feel' has been really subjective.
When we do a "Trigger Job" you can SEE the improvement as well as feel it.
Goals of a FIRST Gunsmithing Trigger Job
- Smooth and eliminate grittiness in trigger feel. Improves predictability of release.
- Reduce trigger break force. Desirable release forces are for Self Defense: 10-12 lbs, for Plinking: 6-8 lbs, for Target or long range Hunting: 3-5 lbs.
- Reduce overall pull distance, “pre-travel,” to the extent that a reliable trigger reset will permit. Improves repeatability of shot placement.
- Reduce “over-travel” improves accuracy. If finger accelerates after pull and hits back stop too hard, it may jar the gun while the bullet is still in the barrel.
- Increase slope of trigger break force onset. Increases awareness of trigger brake point and repeatability of release and accuracy.

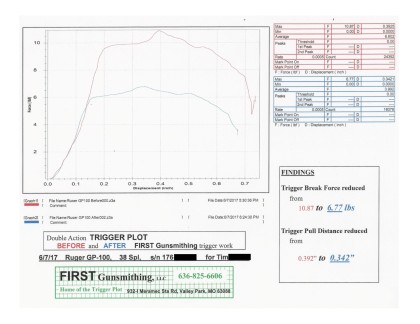

To the left is an actual Double Action Trigger Plot on a Ruger GP-100 revolver.
Trigger break force reduced from 10.87 pounds to 6.77 pounds.
You can tell by the smoother blue line that the trigger feels smoother than before too.
Below is an actual Single Action Trigger plot from a Century 308 rifle.
Trigger break force reduced from 10.68 pounds to 5.84.
Trigger Pull distance shortened up by 30%.
At the top of the red graph line, you can see a "false break" peak. Our trigger job has smoothed that away, making a cleaner break.
-
